Y-Bearing Unit SYJ 70 TF, Ø70 mm – SKF-1

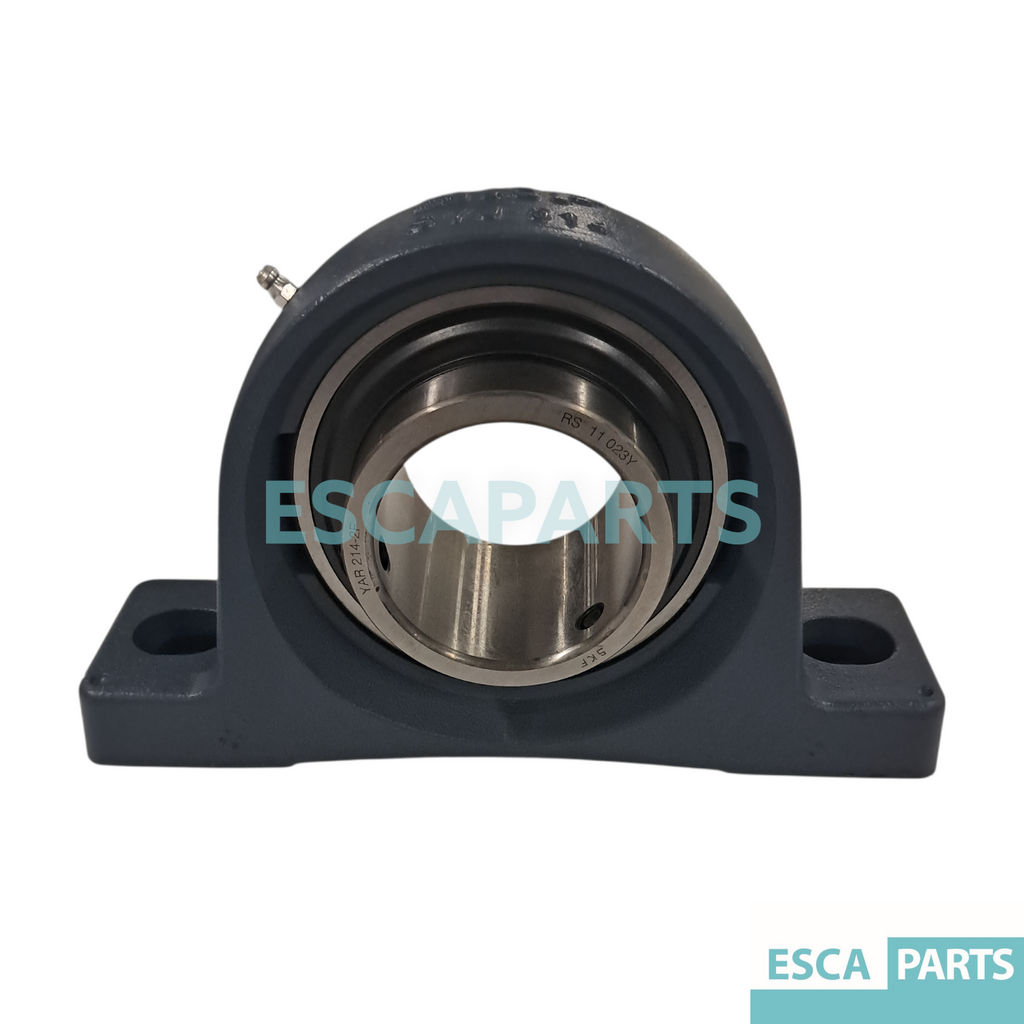

  • Y-Bearing Unit SYJ 70 TF, Ø70 mm – SKF-1

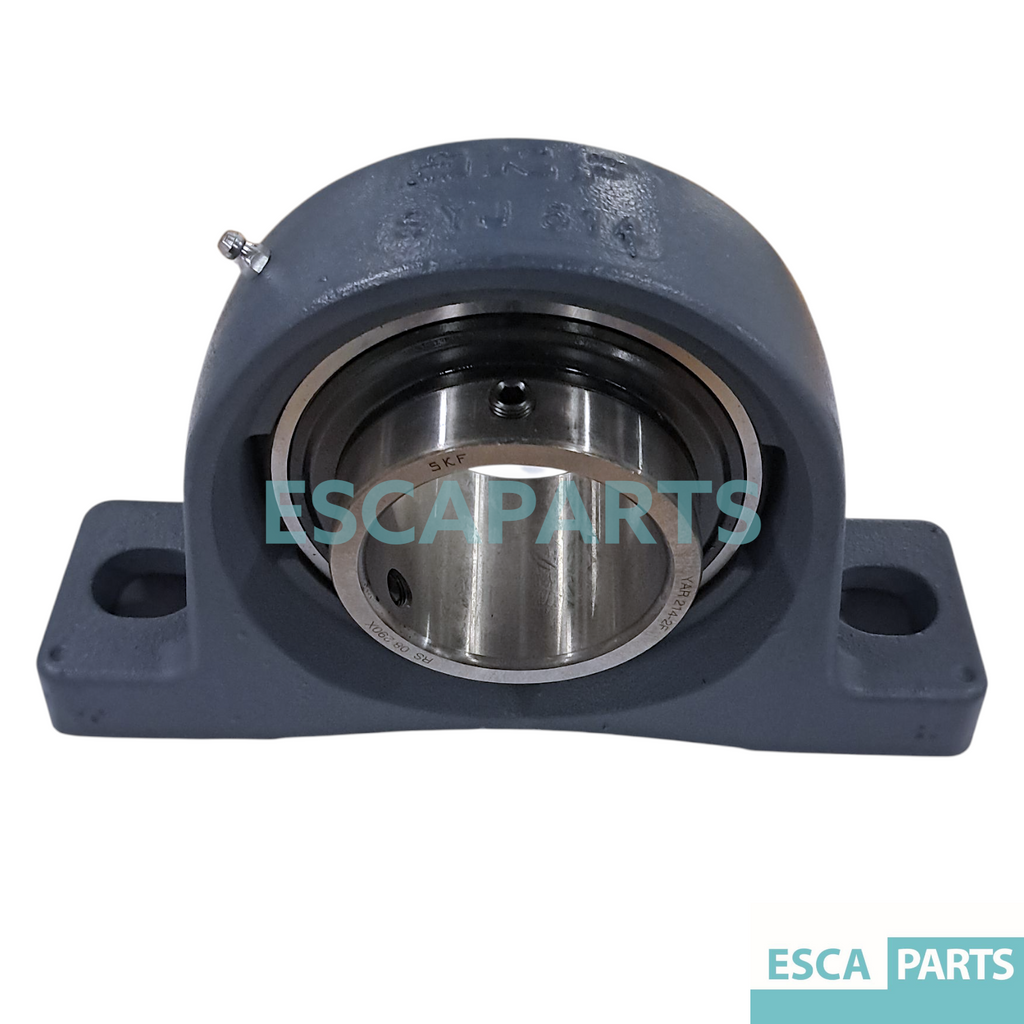

  • Y-Bearing Unit SYJ 70 TF, Ø70 mm – SKF-2

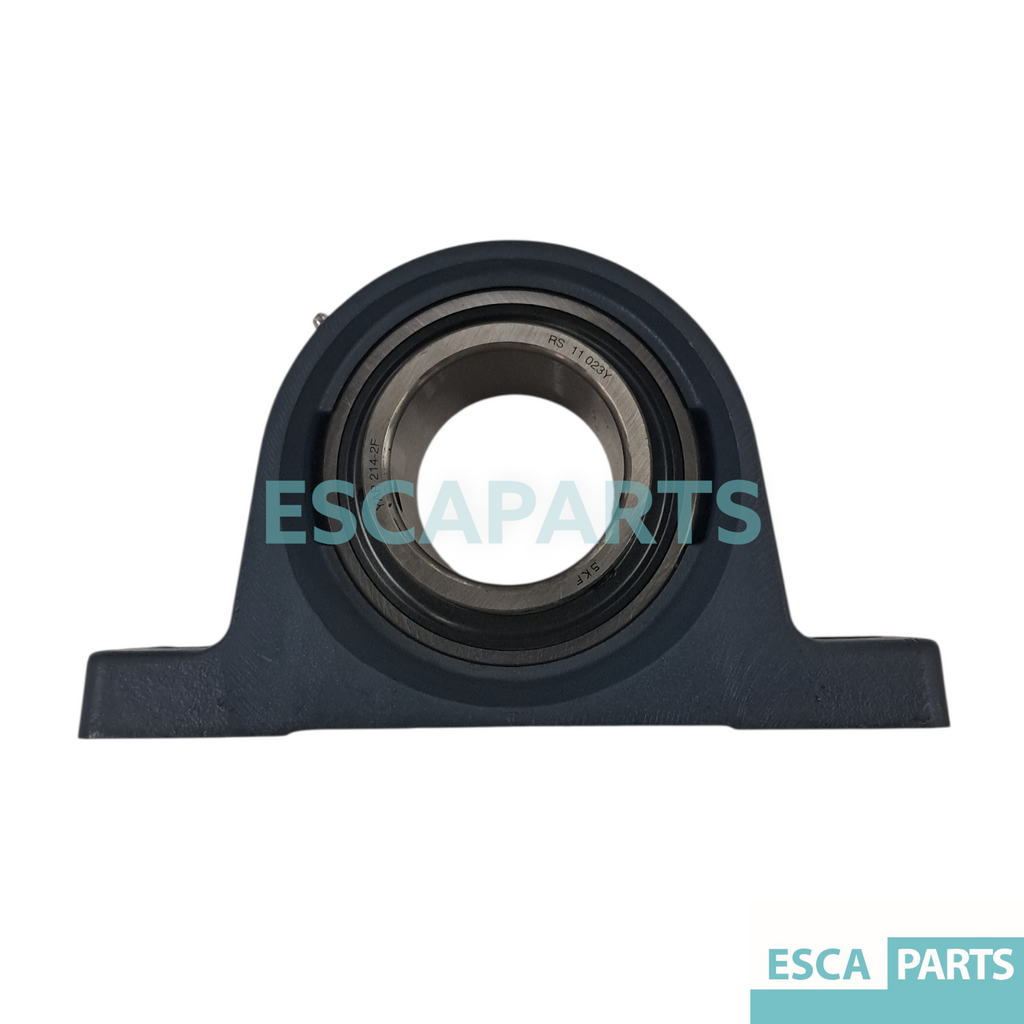

  • Y-Bearing Unit SYJ 70 TF, Ø70 mm – SKF-3
Bearing lower shaft SKF Unit SYJ 70 TF, Ø70 mm – Compadible thyssen

Category: Bearings, Seal

Bearing lower shaft SKF Unit SYJ 70 TF, Ø70 mm – Compadible thyssen

Article number: 530007

SKF Y-bearing unit SYJ 70 TF with 70 mm shaft diameter.

Prices are sent via quote.

Y-bearing unit SYJ 70 TF by SKF, complete pillow block unit with integrated ball bearing. Designed for industrial applications requiring high operational reliability.

Dimensions

Shaft diameter: 70 mm

Bolt diameter: 20 mm

Centre height (cast housing): 79.4 mm

Total housing width: 72 mm

Bolt hole centre distance: 210 mm

Total bearing width: 69.9 mm

Performance

Dynamic load rating: 62.4 kN

Static load rating: 45 kN

Limiting speed: 2,800 r/min

Note: Limiting speed applies with shaft tolerance h6

Net weight: 6.22 kg
