Category: Step accessories

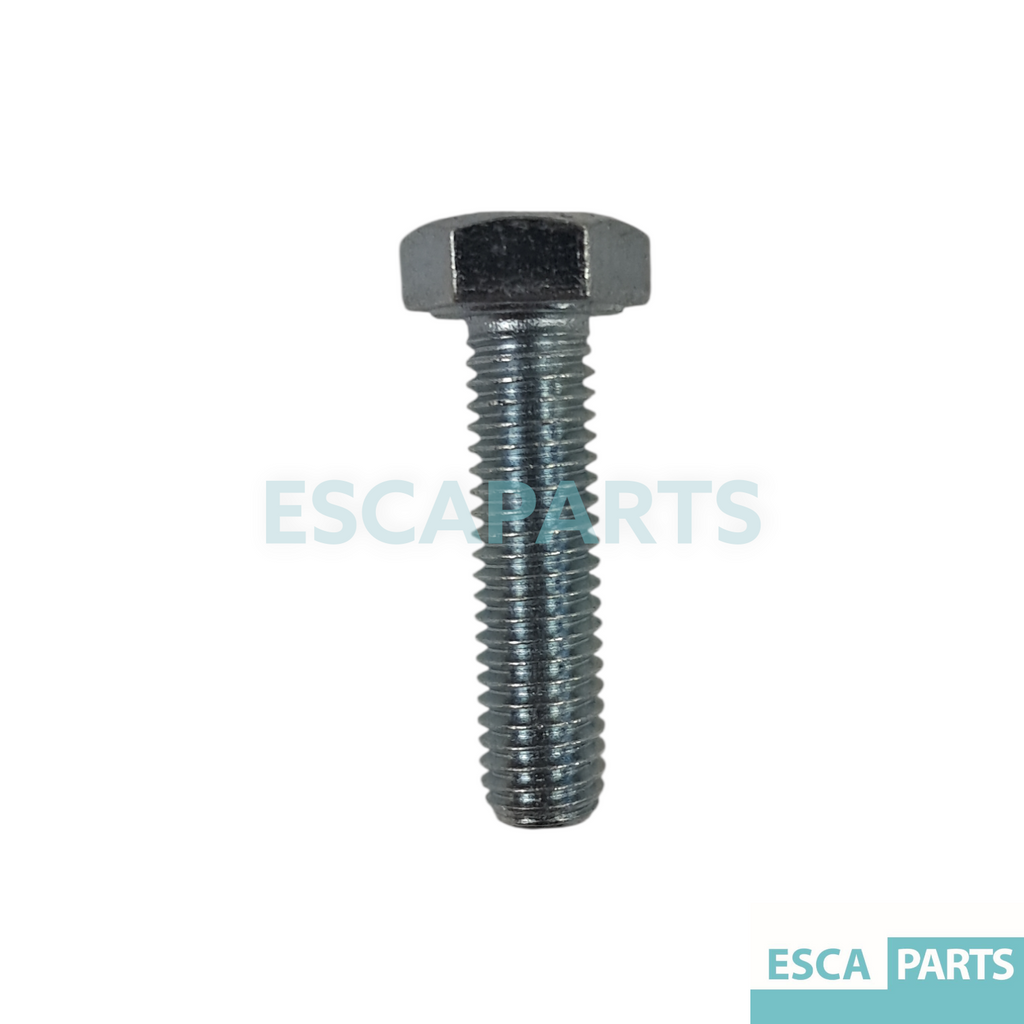

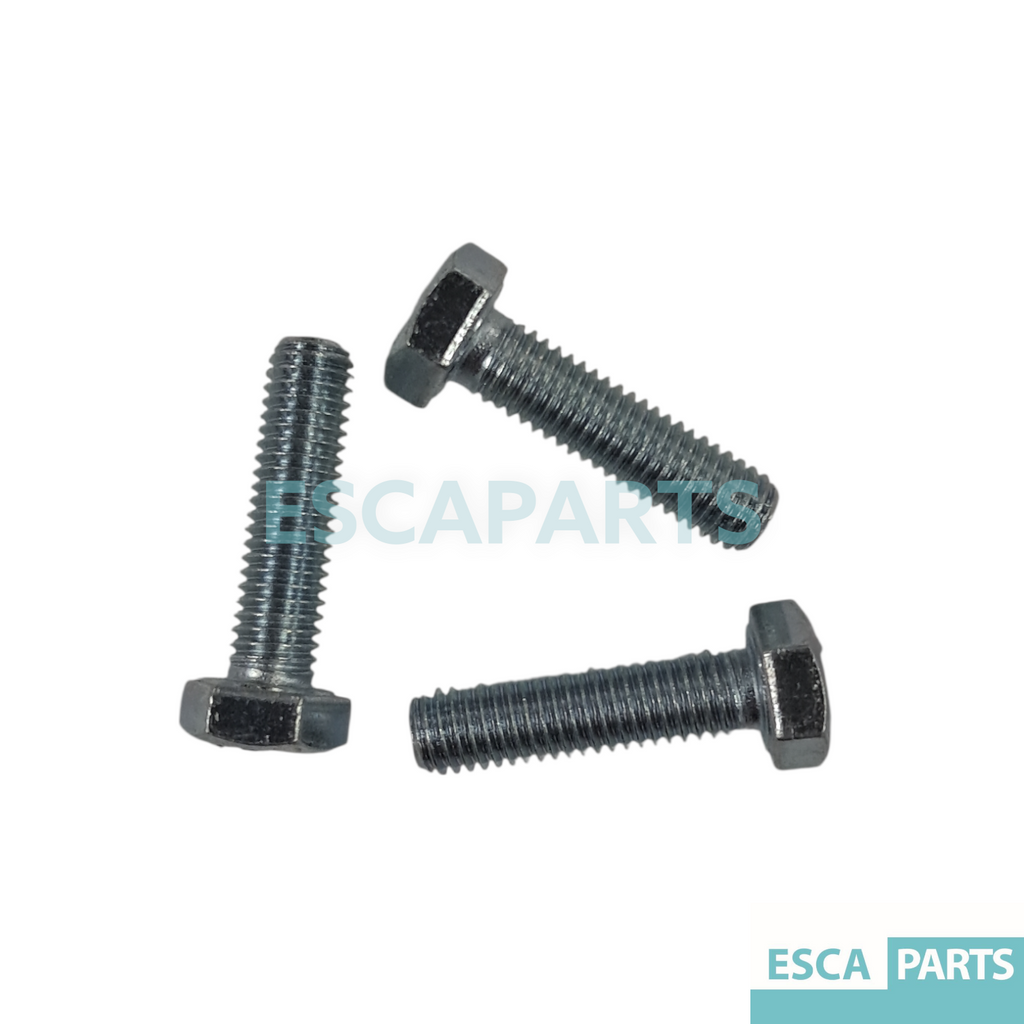

Mounting screw for step connector or axle M8x30 - compatible with kone/ O&K
Prices are sent via quote.
The screw is designed for mechanical fastening applications where high strength and secure installation are required.
The screw is manufactured in strength class 8.8 and zinc plated for corrosion protection. The fully threaded design makes it suitable for escalator mechanical assemblies.
Specifications
General data
Type: Hexagon head screw, fully threaded
Application: Step connector / axle fastening
Standards
ISO 4017
Material standard: ISO 898-1
Surface treatment standard: ISO 4042
Material and finish
Material: Steel

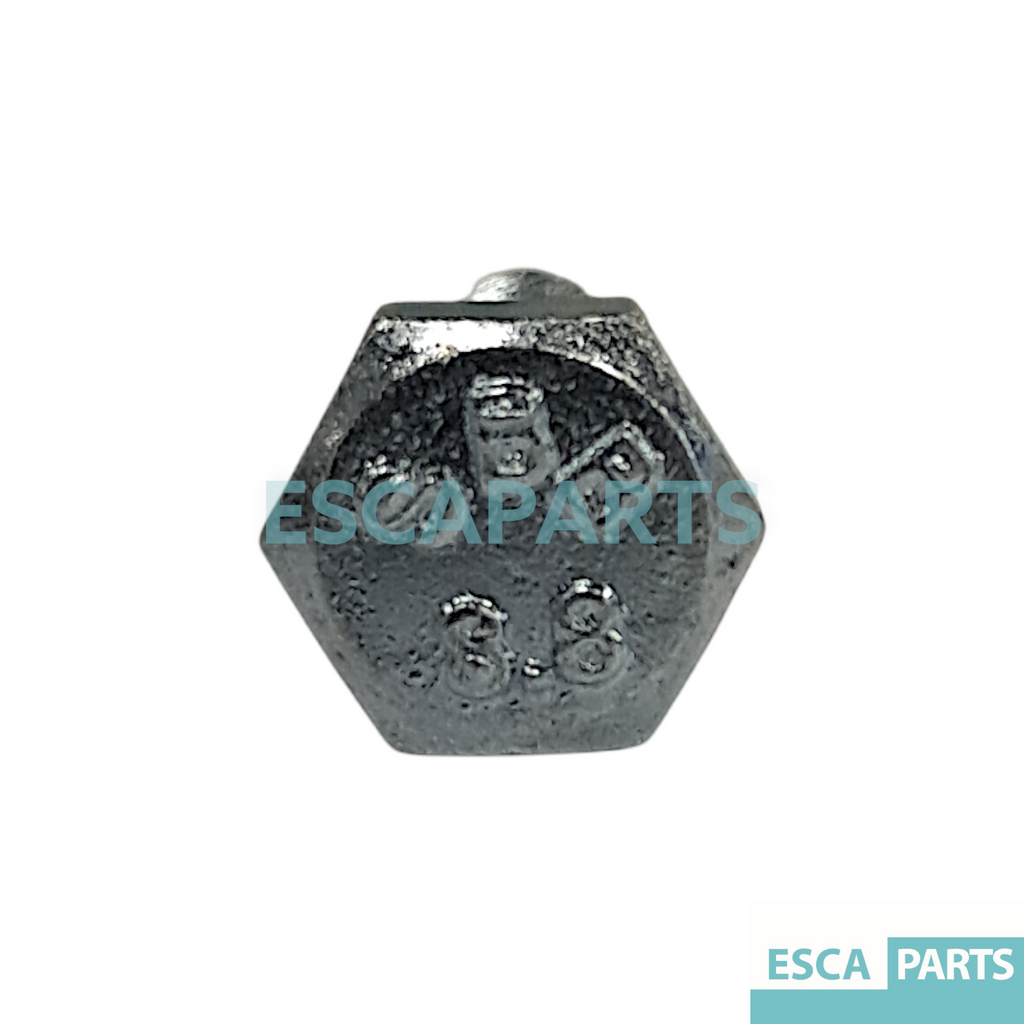

Strength class: 8.8
Surface finish: Zinc plated (FZB-ZN)
Corrosion class: C1
Dimensions
Thread size: M8
Thread pitch: 1.25 mm
Length: 30 mm
Thread length: 30 mm
Wrench size: 13 mm
Head height: 5.3 mm
Weight: 0.0155 kg
