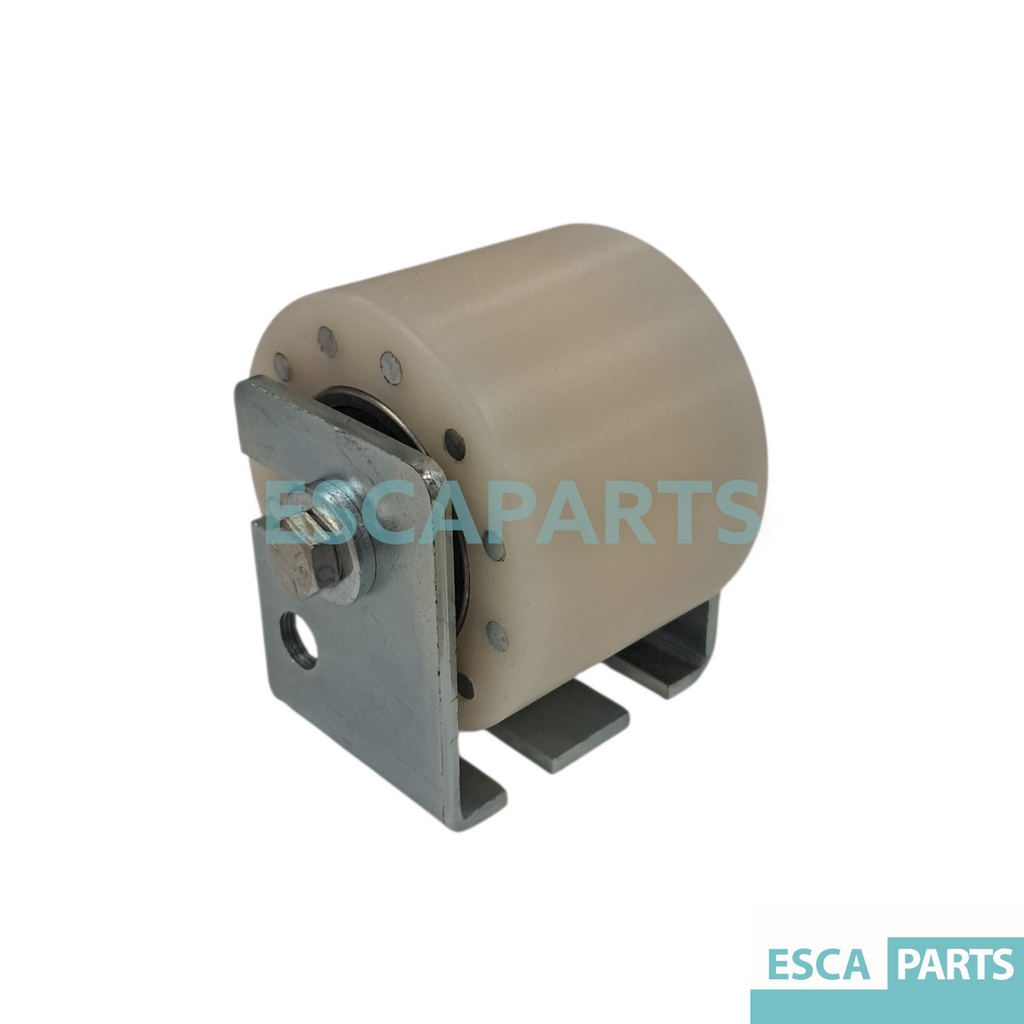

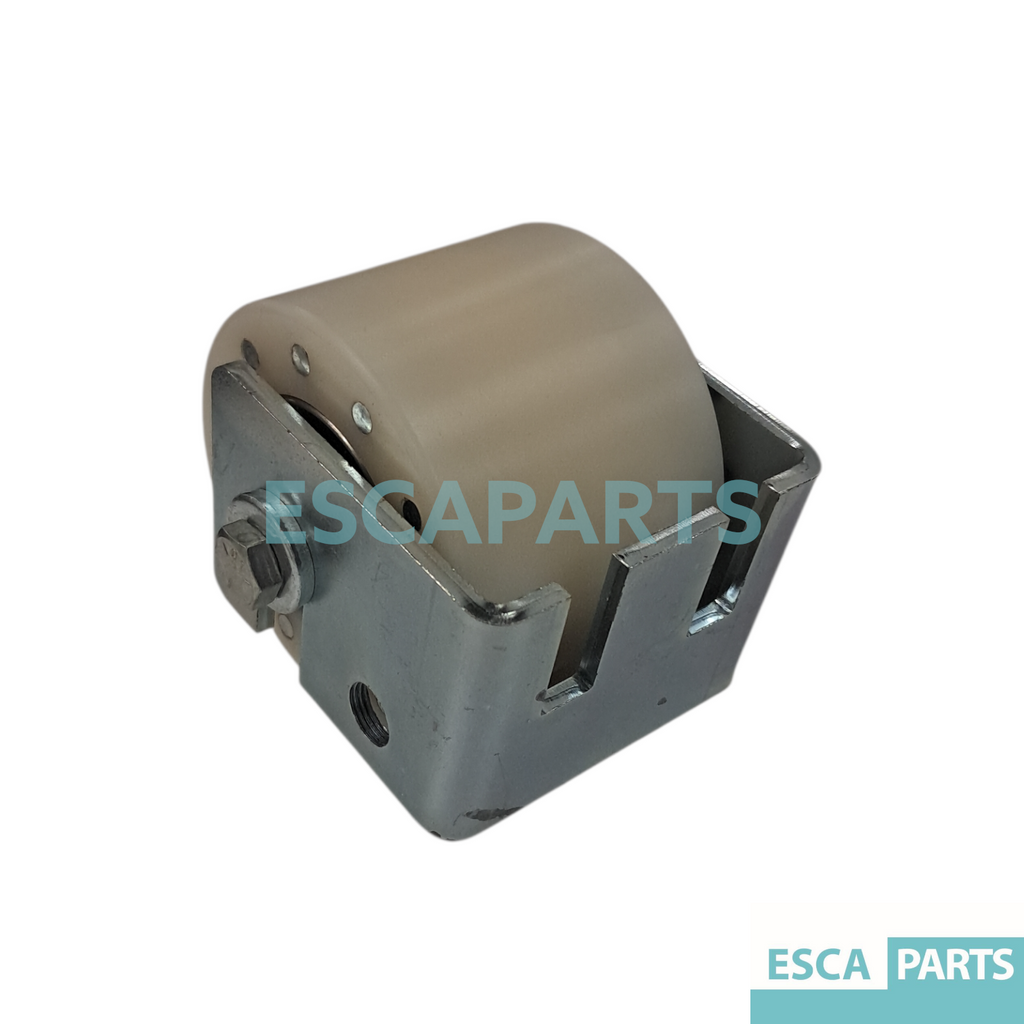

Handrail Monitoring Roller 12 Points D76.2×57 mm ID20 (KM5071696G03) – compatible with KONE-1
  • Handrail Monitoring Roller 12 Points D76.2×57 mm ID20 (KM5071696G03) – compatible with KONE-1
  • Handrail Monitoring Roller 12 Points D76.2×57 mm ID20 (KM5071696G03) – compatible with KONE-2
Handrail Monitoring Roller 12 Points D76.2×57 mm ID20 (KM5071696G03) – compatible with KONE

Category: Handrail rollers

Handrail Monitoring Roller 12 Points D76.2×57 mm ID20 (KM5071696G03) – compatible with KONE

Article number: 470014

Handrail monitoring roller with 12 points. Dimension 76.2×57 mm, inner diameter 20 mm.

Prices are sent via quote.

Roller for handrail monitoring in escalator handrail systems. Designed with 12 contact points and integrated bearing.

General information


Designation: ROLLER, D76.2/20MM W57MM

Type: Handrail monitoring roller

Number of points: 12

Bearing: Yes

Dimensions

Outer diameter: 76.2 mm

Width: 57 mm

Inner diameter: 20 mm


Range: OD 70.1–80 mm / Width 50.1–100 mm / ID 15.1–20 mm)

Weight

Gross weight: 1.0 kg
